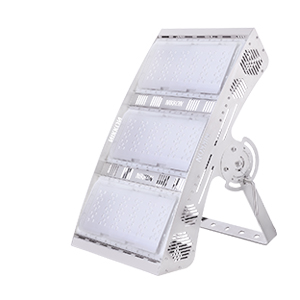

LEDXION AEROS
Indoor Lighting
Product Description
LUMINAIRE SPECIFICATIONS
- Power - 360W 540W
- Fitting Material - 316 Grade Stainless Steel
- Optical Cover - High Transparency Polycarbonate
- Ingress Protection - IP66
- Impact Protection - IK08
- Voltage - 220 ~ 240 Vac 50 / 60Hz
- Electrical Safety Class - Class I
- Operating Temperature - -30 ~ +450C
- Installation - Mounting Bracket
- Surge Protections - 10KV, 20KA
OPTIONAL FEATURES (UPON REQUEST)
- Driver - Constant Current, 1-10V Dimming, DALI
- Beam Angle - 51° (MB51) 19° (NB19)
- Control - Intelligent Light Control System
- Power Cable - 2m (Pre-Wire), 5m, 10m, 15m & 20m (Optional)
LED MODULE SPECIFICATIONS
- Color Temperature – 3000K Warm White 4000K Neutral White
5000K Cool White - Color Rendering Index – >70(CRI)
- L70 – 100,000 Hrs @ 250C
- PCB Material – Ceramic (Alumina Substrate)
- PCB Trace – Silver Conductor (Ag)
- SMD Connector – WAGO 2060 Series
COMPLIANCE STANDARD
- LED – LM80, UL, RoHS
- Driver – CE, EN62493, EN61347, EN50581, EN55015, EN61000, EN61547, EN62384
- Luminaire – EN60598-1, EN60598-2-5, EN62493, EN55015, EN6
APPLICATION
- Sport & Facade Lightings, Jetties, Highmasts, Sea Ports, Tower Cranes & Stadium Lightings
