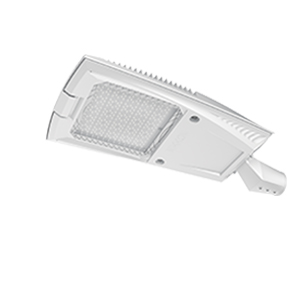

LEDXION GALAXY M1 & M2 STREET LANTERN
Street Lighting
Product Description
LUMINAIRE SPECIFICATIONS
- Power - M1 - 30W, 60W, 90W, 120W M2 - 120W, 140W, 160W, 180W, 200W, 220W
- Fitting Material - Marine Grade High Corrosive, Resistant Die - Cast Aluminium
- Fitting Color - White Aluminium, Akzo Nobel RAL9006
- Optical Cover - High Transparency Tempered Glass
- Ingress Protection - IP66
- Impact Protection - IK08
- Voltage - 220 ~ 240 Vac 50 / 60Hz
- Electrical Safety Class - Class I (Class II Upon Request)
- OperatingTemperature - -30 ~ +50 C
- Surge Protections - 10KV, 20KA
- Installation - M1 -ø48 mm orø60 mm (Upon Request) M2 -ø60 mm
OPTIONAL FEATURES (UPON REQUEST)
- Driver -1-10V Dimming, Time Diming Control, Constant Current-Output
- Optics - Type II or Type III Lens
- Control - Intelligent Light Control System
LED MODULE SPECIFICATIONS
- Color Temperature 3000K Warm White 4000K Neutral White 5000K Cool White
- Color Rendering Index (CRI) >70
- L70 100,000 Hrs @ 25 C
- PCB Material Metal Core
- PCB Trace Copper
- SMD Connector WAGO 2060 Series
- COMPLIANCE STANDARD
- LED LM80, UL, RoHS
- Driver CE, EN62493, EN61347, EN50581, EN55015, EN61000, EN61547, EN62384
- Luminaire LM79, EN60598-1, EN60598-2-3, EN62493, EN55015, EN61547, EN61000, EN62471, IEC62722
APPLICATION
- M1 – Pathways, Car Parks, Foot Paths, Access Ways, Parks,
Road Lightings, Residential Areas & Pedestrian Areas - M2 – Pedestrian Areas, Residential Areas, Rura
