LEDXION S2266
Indoor Lighting
Product Description
LUMINAIRE SPECIFICATIONS
- Power 140W 185W 230W
- Fitting Material Non-Corrosive Die-Cast Aluminium
- Fitting Color Dark Gray, Akzo Nobel RAL7012
- Optical Cover Anti Glare High Transparency Frosted Tempered Glass
- Ingress Protection IP66 (Lamp & Gear Compartments) IP65 (Control Gear) - for Type 3 & 4
- Impact Protection IK08
- Voltage 220 ~ 240 Vac 50 / 60Hz
- Electrical Safety Class Class I
- Operating Temperature -30 ~ +450C

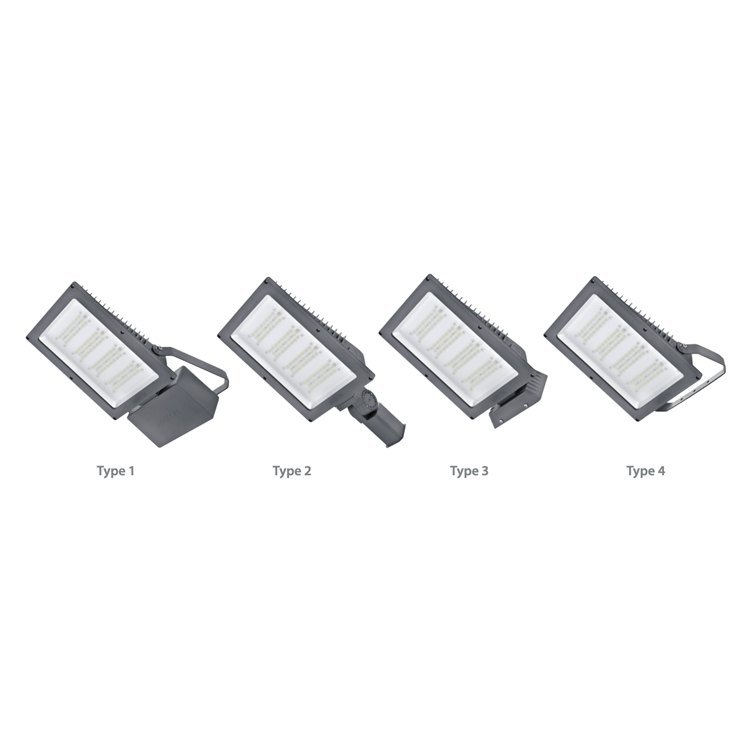

- Installation Mounting Bracket (Type 1 & 4) Pole Mounting (Type 2) Wall Mounting (Type 3
- Surge Protections 10KV, 20KA
LED MODULE SPECIFICATIONS
- Color Temperature 3000K Warm White 4000K Neutral White 5000K Cool White
- Color Rendering Index >70 Cool White & Neutral White (CRI) >80 Warm White
- L70 100,000 Hrs @ 250C
- PCB Material Ceramic (Alumina Substrate)
- PCB Trace Silver Conductor (Ag)
- SMD Connector WAGO 2060 Series
COMPLIANCE STANDARD
- LED LM80, UL, RoHS
- Driver CE, EN62493, EN61347, EN50581, EN55015, EN61000, EN61547, EN62384
- Luminaire EN60598-1, EN60598-2-5, EN62493, EN55015, EN61547, EN61000, EN62471, CISPR 15
APPLICATION
- Parking Areas, Facade & Stadium Lightings, Sport Lightings, Commercial & Residential Areas, & Jetties
