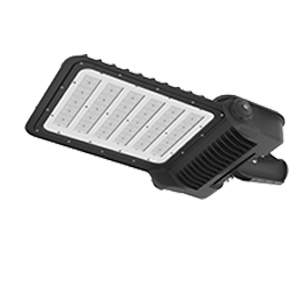

LEDXION S466 STREET LANTERN
Street Lighting
Product Description
LUMINAIRE SPECIFICATIONS
- System Power 200W - 250W, 300W, 350W
- Fitting Material - Non-Corrosive Die-Cast Aluminium
- Fitting Color - Interpon300AS 94-163X2/T
- Optical Cover - High Transparency Tempered Glass
- Ingress Protection - IP66
- Impact Protection - IK08
- Voltage - 220 ~ 240 Vac 50 / 60Hz
- Electrical Safety Class - Class I
- Operating Temperature - 30 ~ +500C
- Installation - Ø60mm Side Entry / Post Top
- Surge Protections - 10KV, 20KA
OPTIONAL FEATURES (UPON REQUEST)
- Driver 1-10V Dimming
- Control Intelligent Light Control System
- Sensor Mini Photocell
LED MODULE SPECIFICATIONS
- Color Temperature 3000K Warm White
4000K Neutral White
5000K Cool White - Color Rendering Index >70
(CRI) - L70 100,000 Hrs @ 250C
- PCB Material Ceramic (Alumina Substrate)
- PCB Trace Silver Conductor (Ag)
- SMD Connector WAGO 2060 Series
COMPLIANCE STANDARD
- LED LM80, UL, RoHS
- Driver CE, EN62493, EN61347, EN50581,
EN55015, EN61000, EN61547, EN62384 - Luminaire LM79, EN60598-1, EN60598-2-3, EN62493,
EN55015, EN61547, EN61000, EN62471,
CISPR 15, IEC62722
APPLICATION
- Motor Ways, Municipal Areas, Expressways, Highmasts, Tennis / Sport Courts, Carparks, Jetties & Ports
