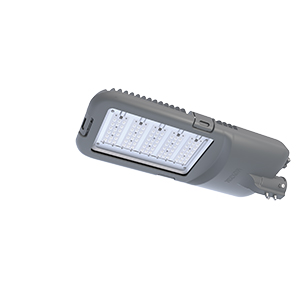

LEDXION S536
Street Lighting
Product Description
LUMINAIRE SPECIFICATIONS
- Power - 150W 170W 190W 210W
- Fitting Material - Marine Grade Non-Corrosive Aluminium
- Fitting Color - Dark Gray, Akzo Nobel RAL7012
- Optical Cover - 95% Transparency Tempered Glass
- Ingress Protection - IP66
- Impact Protection - IK08
- Voltage - 220 ~ 240 Vac 50 / 60Hz
- Electrical Safety Class - Class I
- Operating Temperature - (-30 ~ +450C)
- Surge Protections - 10KV, 20KA
- Installation - ΓΈ48 - 60mm
OPTIONAL FEATURES (UPON REQUEST)
- Driver - Time Control, 1-10V Dimming, Full Programmable
- Control - Intelligent Light Control System
- Sensor - NEMA Photocell
LED MODULE SPECIFICATIONS
- Color Temperature – 3000K Warm White 4000K Neutral White 5000K Cool White
- Color Rendering Index – >70 (CRI)
- L70 – 100,000 Hrs @ 250C
- PCB Material – Ceramic (Alumina Substrate)
- PCB Trace – Silver Conductor (Ag)
- SMD Connector – WAGO 2060 Series
COMPLIANCE STANDARD
- LED – LM80, UL, RoHS
- Driver – CE, EN62493, EN61347, EN50581, EN55015, EN61000, EN61547, EN62384
- Luminaire – LM79, EN60598-1, EN60598-2-3, EN62493, EN55015, EN61547, EN61000, EN62471, CISPR 15, IEC62722
APPLICATION
- Rural Roads, Urban Roads, Express Ways, Car Parks, Roundabouts, Motorways & Municipal Areas
