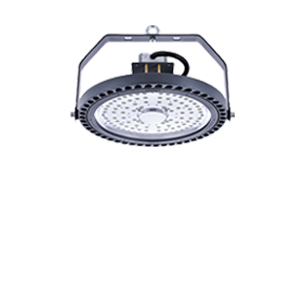

LEDXION S6310 MEDI HIGHBAY
Outdoor Lighting
Product Description
LUMINAIRE SPECIFICATIONS
- Power - 80W, 100W, 120W
- Fitting Material - Non-Corrosive Die-Cast Aluminium
- Fitting Color - Dark Gray, Akzo Nobel RAL7016
- Optical Cover - 95% Transparency Clear Tempered Glass
- Ingress Protection - IP20 IP66 (Upon Request)
- Impact Protection - IK08
- Voltage - 220 ~ 240 Vac 50 / 60Hz
- Electrical Safety Class - Class I
- Operating Temperature - -30 ~ +450C
- Installation - Hook Mounting Bracket
- Surge Protections - 10KV, 20KA (External)
OPTIONAL FEATURES (UPON REQUEST)
- Driver - DALI, 1-10V Dimming
- Optics - Wide Beam, MB51 or NB19
- Control - Intelligent Light Control System
LED MODULE SPECIFICATIONS
- Color Temperature – 3000K Warm White 4000K Neutral White 5000K Cool White
- Color Rendering Index – >70 (CRI)
- L70 – 100,000 Hrs @ 250C
- PCB Material – Ceramic (Alumina Substrate)
- PCB Trace – Silver Conductor (Ag)
- SMD Connector – WAGO 2060 Series
COMPLIANCE STANDARD
- LED LM80, UL, RoHS
- Driver CE, EN62493, EN61347, EN50581, EN55015, EN61000, EN61547, EN62384
- Luminaire EN60598-1, EN60598-2-1, EN62493, EN55015, EN61547, EN61000, EN62471
APPLICATION
- Eateries, Retails, Hallways, Storage Rooms & Halls
