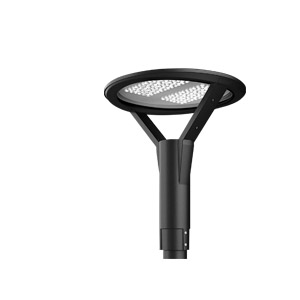

Vupa G1
Outdoor Lighting
Product Description
LUMINAIRE SPECIFICATIONS
- Power - 40W 60W 75W
- Fitting Material - Non-Corrosive Cast Aluminium
- Fitting Color - Black / Light Grey
- Optical Cover - Tempered Glass
- Ingress Protection - IP66
- Impact Protection - IK08
- Voltage - 220 ~ 240 Vac 50 / 60Hz
- Power Factor ≥0.9 (at Full Load)
- Operating Temperature - (-30 ~ 400C)
- Installation - Ø60mm / Ø76mm (Upon Request) Post Top or Round Bar
- Surge Protections - 4KV
- Pre - Wire 1.5m
LED MODULE SPECIFICATIONS
- LED – Chips 3030
- Color Temperature – 3000K Warm White 4000K Neutral White
- Color Rendering Index – RA >70(CRI)
- L70 – 50,000 Hrs @ 250C
- Beam Angle Type – V (140° x 140°)
- PCB Material – Metal Core
COMPLIANCE STANDARD
- LED – LM80, UL, RoHS
- Driver – CE, EN62493, EN61347, EN50581, EN55015, EN61000, EN61547, EN62384
APPLICATION
- Courtyard, Garden, Community, Causeway
